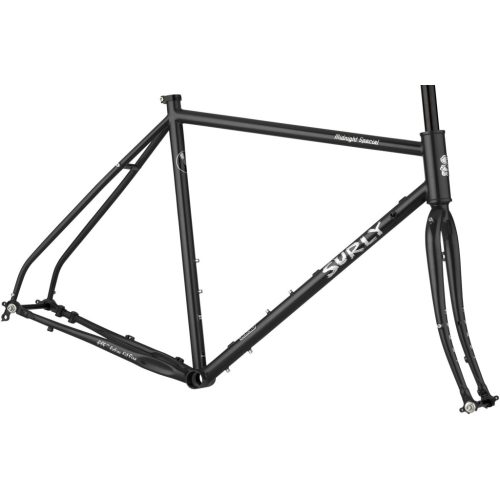

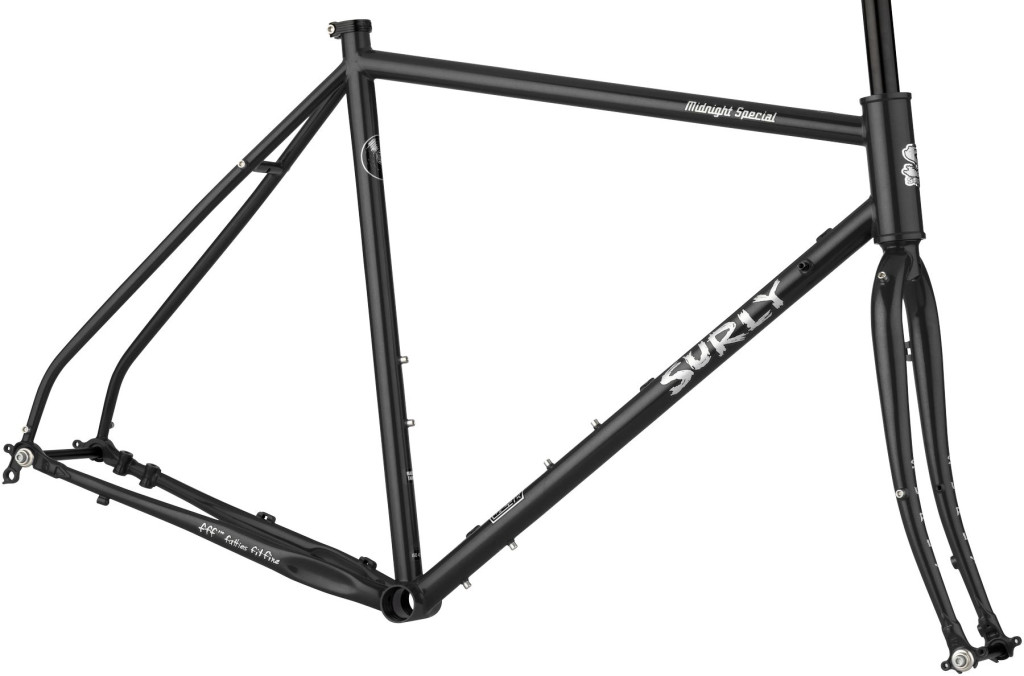

Frame Construction: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork Construction: 4130 Chromoly, Natch tubing, TIG welded, brazed lugs, ED coated

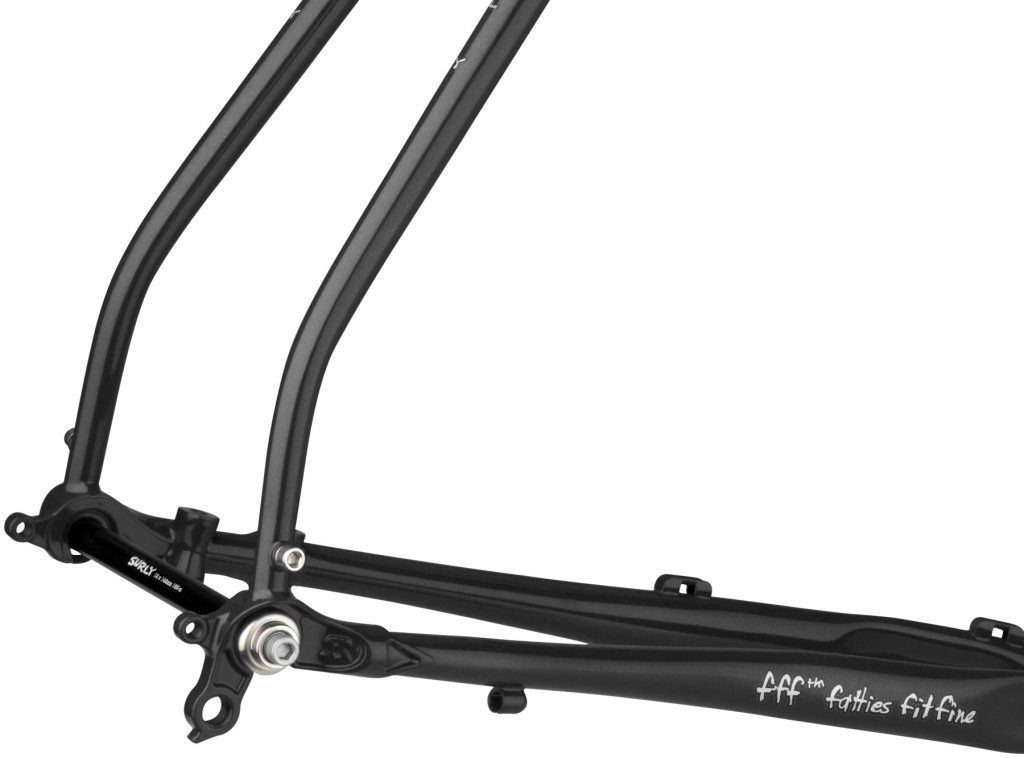

Rear Dropout Configuration: Vertical
Rear Hub Spacing: 12 x 142mm (Surly axle included) / 10 x 135mm with Surly 10/12 Adapter Washers (not included)
Front Hub Spacing: 12 x 100mm (Surly axle included)
Rear Brake: Disc - Flat Mount (160mm max rotor) – 25mm thick mount / 32mm bolt length
Front Brake: Disc - Flat Mount (160mm max rotor) – Use Brake Manufacturer's Front Flat Mount Adapter and Supplied Bolts
Head Tube: Ø44mm
Steerer Tube: Ø28.6mm (1-1/8")
Crown Race: Ø30mm (1-1/8")
Stock Headset Upper (S.H.I.S.): ZS44/28.6
Stock Headset Lower (S.H.I.S.): EC44/30
Seat Collar: Ø30mm
Seatpost: Ø27.2mm
Front Derailleur (Clamp): Bottom-pull (Ø28.6mm)
Max Chainring (CL):
- 1x (Road): 44T
- 2x (Road): 34/50T
- 3x (Road): 30/39/50T

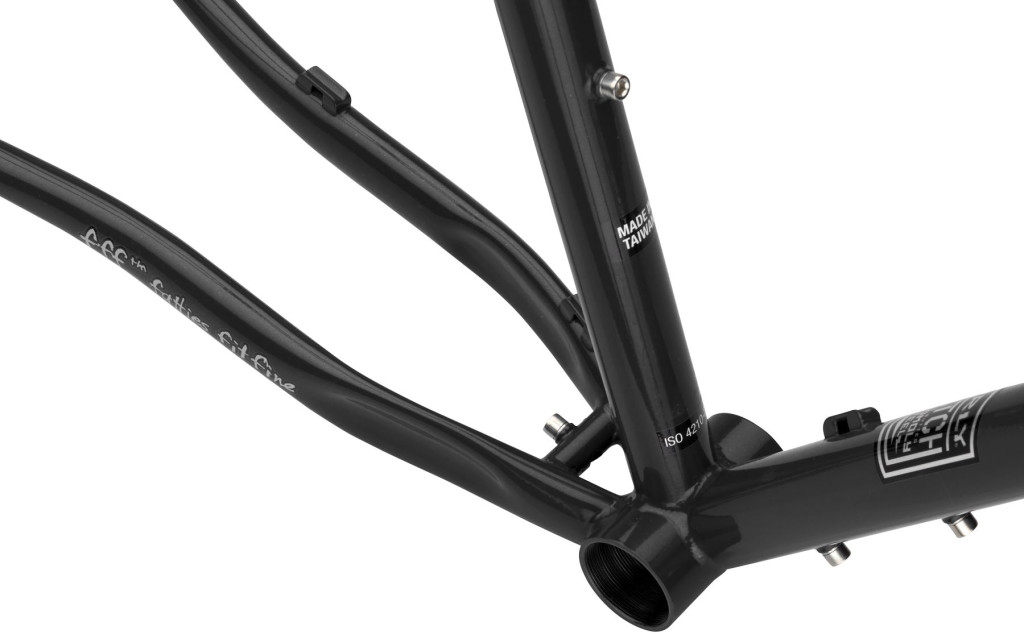

Bottom Bracket: 68mm threaded (1.37" x 24TPI)
Tire Clearance Frame (w/o fenders): 27.5 x 2.35" / 700c x 42mm
Tire Clearance Frame (w/ fenders): 650b x 50 / 700c x 38mm
Tire Clearance Fork (w/o fenders): 27.5 x 2.35" / 700c x 42mm
Tire Clearance Fork (w/ fenders): 650b x 50 / 700c x 38mm
Rigid Fork Spec: 400 x 50mm (40 - 54cm) / 400 x 40mm (56 - 64cm)
Bottle Mounts Frame: 3 Standard
Bottle Mounts Fork: N/A
Rack Mounts Frame: Yes (upper and lower threaded)
Rack Mounts Fork: Yes (upper, lower, and mid-blade threaded)
Fender Mounts Frame: Yes
Fender Mounts Fork: Yes
Other Features: Downtube mounted shifter bosses (cable housing stops not included with frameset)
